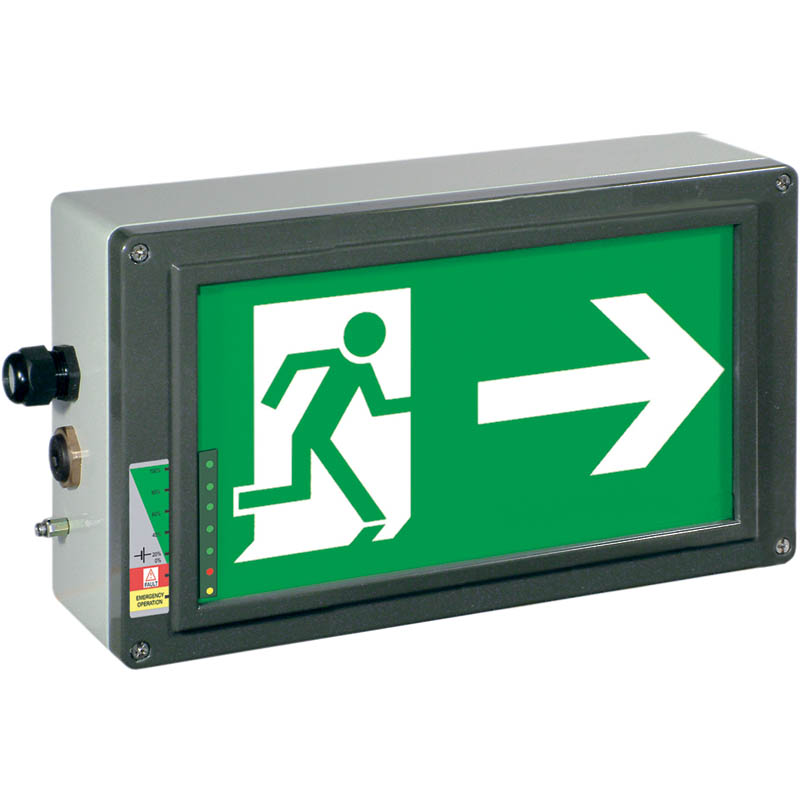

The Ex-Lite series of explosion-protected escape
sign luminaire fulfils the requirements of ATEX
Directive 94/9/EC and EN 60598, Section 2.22
for emergency lighting luminaires. The luminaires
are suited for marking escape routes and exits
in potentially explosive atmospheres. Only white,
high-efficiency LEDs are used as illuminants for
these luminaires. This guarantees maintenancefree
operation, as the illuminants do not need
replacing throughout the complete service life of
the luminaire.
The supply electronics are also laid out for this
service life, the LED circuits are intrinsically safe.
The wide input voltage range allows international
use. The housing of these luminaires is made of
robust light alloy: the escape signs comply with
the latest standards.
Thanks to the very robust design and high degree
of protection, these luminaires are suited
although under rough conditions for both indoor
and outdoor use.
As an emergency lighting luminaire for main -
tained operation with self-contained battery
system, the Ex-Lite N features an NC battery
and automatic function monitoring with operating
time test.
With the optional built-in CG-S monitoring module
with coding switch for max. 20 addresses,
this luminaire can also be used as an individually
monitored emergency lighting luminaire that is
connected to a CEAG emergency lighting supply
system. With this, the operator can programme
the switching mode according to the respective
requirements. Thus, as many as 20 luminaires
with different switching modes can be connected
to one end circuit.
